Robotic Freight Elevator by Pera Mühendislik

Robotic Freight Elevator by Pera Mühendislik

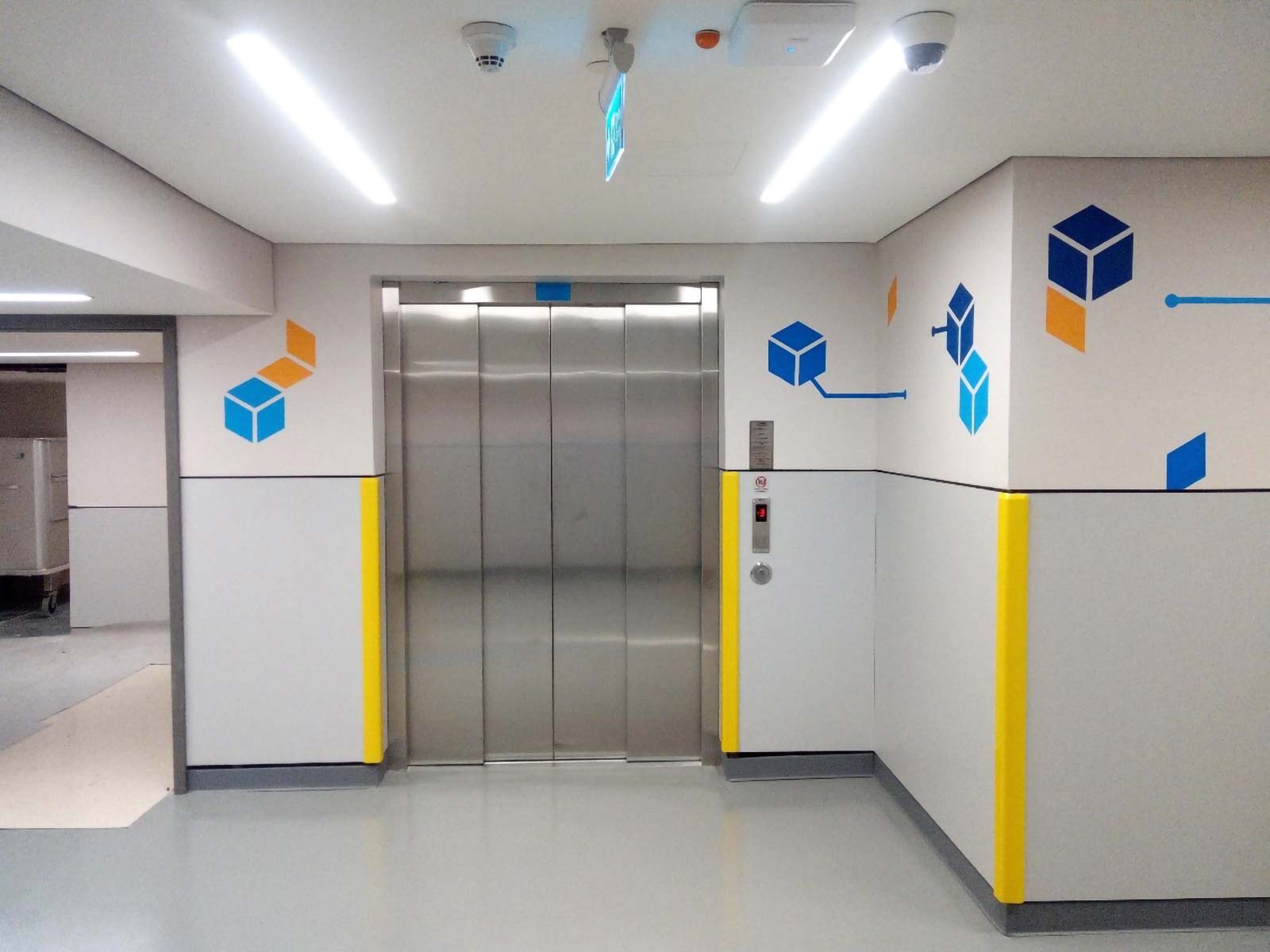

Freight elevator with a capacity of 1,500 kg

Pera Mühendislik is drawing great attention with its robotic freight elevator at Acıbadem Project Management, Istanbul Acıbadem Maslak Hospital, designs manufactured in line with the customer’s private technical demands as well as the codes and directives.

submitted by Pera Mühendislik

Pera Mühendislik, which has important references in the sector — especially in design, installation, modernization, maintenance and service of all kinds of hydraulic elevators and manufactures standard lifts — also manufactures robotic elevators with outstanding design in line with the needs of the customers, installs systems equipped with cutting-edge high technology on project basis and provides after services.

Pera Mühendislik attained a place in the world of developing technology with its autonomous elevators added to its custom design elevators range.  The elevator, designed and manufactured for the Acıbadem Project Management Group following an intense R&D and design studies, has been in operation at the hospital since 2018.

Autonomous Freight Elevator Working Principle

After taking the loads, carrier robots move toward the elevator and calls the elevator when it gets near the landing door by sending a command to the control system about its destination. As all this process is integrated in the control system, robot uses the elevator without any human intervention. When the robot finishes its job, the elevator is put into service of the personnel.

Pera Mühendislik, which works on professional basis, develops various projects not only in Turkey but also in India, Russia, Abkhazia, Iraq, Sudan, Nigeria and Saudi Arabia.

Robotic Freight Elevator by Pera Mühendislik 2
Freight elevator with a capacity of 1,500 kg
Robotic Freight Elevator by Pera Mühendislik 3
Autonomous carries robots operating the lift
Robotic Freight Elevator by Pera Mühendislik 4
Autonomous carries robots operating the lift

Credits:

Traction type: Hydroulic Lift
Capacity: 1,500 kg
Number of stops: 2
Travel distance: 3.9 m
Hoistway dimensions: 2,400 x 2,950
Cabin dimensions: 1,500 x 2,500 x 2,400 mm
Door dimensions: 1,400 x 2,200 mm

submitted by Pera Mühendislik

submitted by Pera Mühendislik
