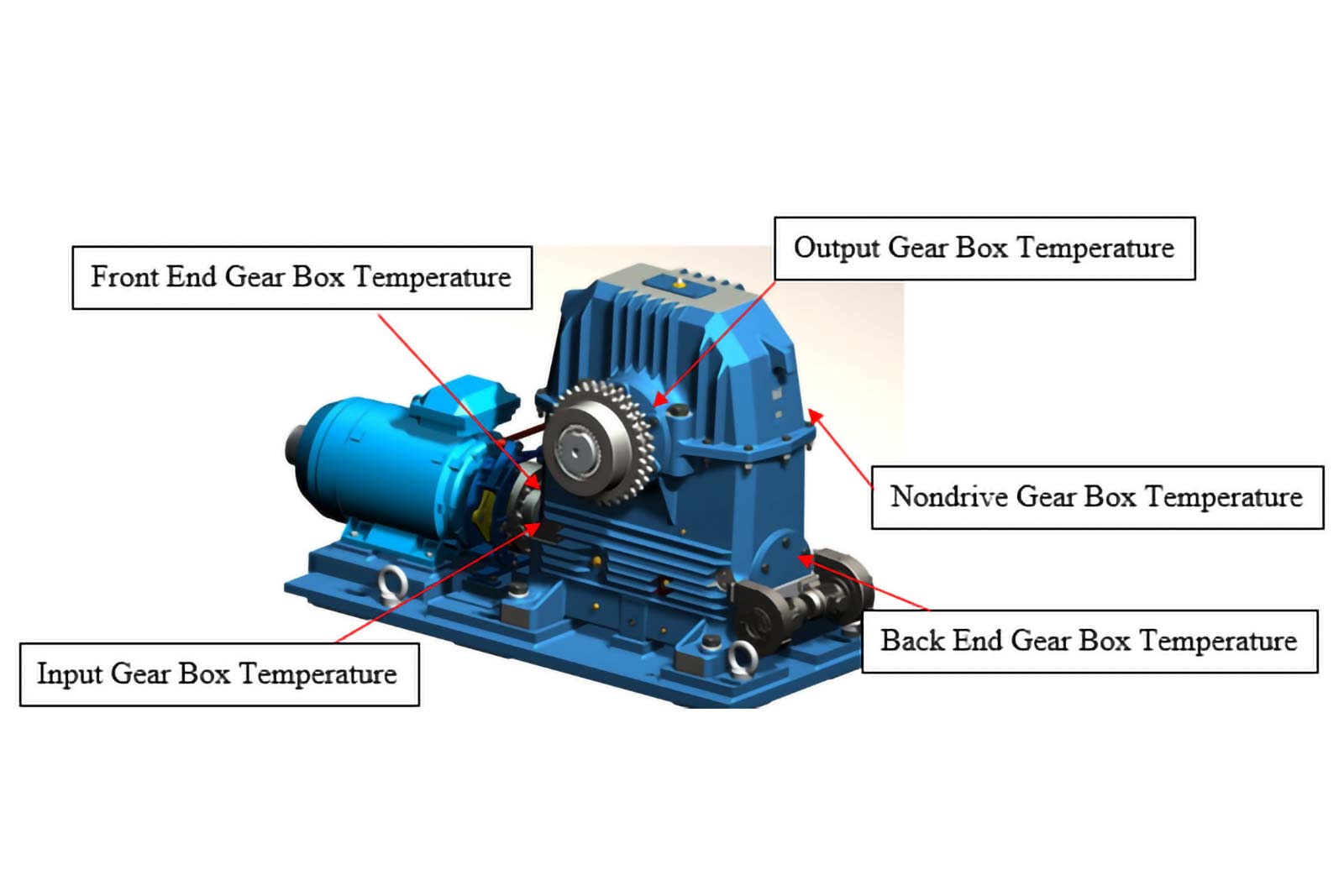

Figure 1: Shows the escalator motor gearbox with the distribution of temperature sensors.

A study focused on the escalator gearbox

Abstract

Our interest in finding a tool that can be used to understand and record the behavior of electro-mechanical machines is continuing in this study. We have chosen escalators for our studies because their natural electrical and systematic designs are based on systematic cyclic and periodic behavior. Escalator nature of operation has given us an excellent platform to determine how regular or irregular or chaotic the behavior of an escalator is, especially when some sort of malfunction develops in it. We used two tools to achieve our objectives:[1-6] the fractal dimension concept and the phase plan map as well as the Poincare section.

In this study, we will concentrate our efforts on the behavior of the gearbox that drives the escalator. The parameter that will be looked at is the temperature of the gearbox. Temperatures were measured from different locations in the gearbox. The phase plan maps and Poincare sections of various traces from various temperature sensors have been plotted, and they present some interesting and useful patterns. The plots can be used as reference maps for the normal and abnormal operating conditions of an escalator.

Introduction

In our previous studies, we proved the fractal nature of escalator behavior during operation.[1-6] We plotted the phase plan map and the Poincare section for escalator behavior.[7,8,9] There were useful and interesting patterns; they showed the patterns of stress level attractors in the machines, how they behave and how they change paths and layout or embedment regions. The general pattern was repetitive, but there were some differences that reflect the local effects from which the measurement was taken. These effects are developed from mechanical malfunction(s) in some areas in the machine.

In this study, our attention will be on the temperature distribution in the escalator gearbox (Figure 1). Motor gearboxes are used to drive a machine like an escalator. The function of the gearbox is to transmit mechanical power from the motor through the gearbox to the escalator top drive shaft. A gearbox consists of a worm shaft (drive/input shaft), a newel wheel sprocket and then the output shaft. Using a prognostic technique to monitor and study the behavior of a gearbox can be a useful tool in achieving maximum efficiency from the gearbox.

The behavior of a complex system like a compressor has been monitored and looked at by many studies.[10-13] The raw-measured signals were used for fault diagnosis. Research concerning the modeling of reciprocating compressors uses phase space trajectories, Poincare maps and Lyapunov exponents for identifying the chaotic behavior of a reciprocating compressor system with subsidence rub-impact fault.[14,15]

Nonlinear and chaotic dynamical systems can be analyzed by using tools like the phase space diagram and Poincare plot.[16] The Poincare map has been used for visualizing the nonlinear chaotic behavior of faults in gears and bearing elements.[16]

This study will provide an insight into behavior and pattern of operation of the escalator gearbox during normal and abnormal conditions.

Temperature Phase Plan Map and Poincare Section for Escalators

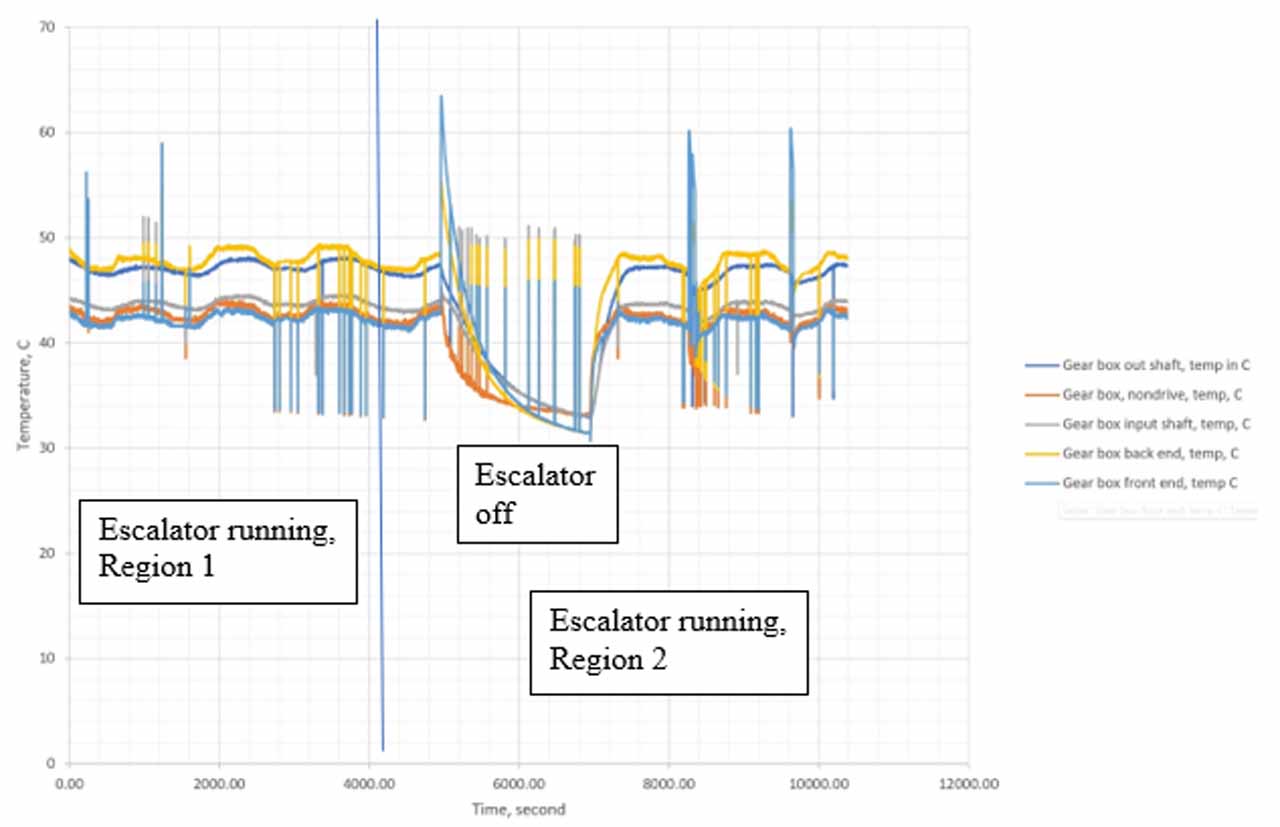

Figure 2: Presents the temperatures against the running time.

Constructing the Map

Temperature sensors were distributed at different locations on the gearbox, as shown in Figure 1. The data/traces were logged into a data logger (Figure 3) and then downloaded to a computer for analysis. The period of the run was divided into two regions: region 1 and region 2. Region 2 includes a shutdown period to impose a stage of variation in the measurements. It is our intention to see whether the adopted technique in this study will or will not detect this variation.

Temperature Phase Plan Map and Poincare Section for Escalators

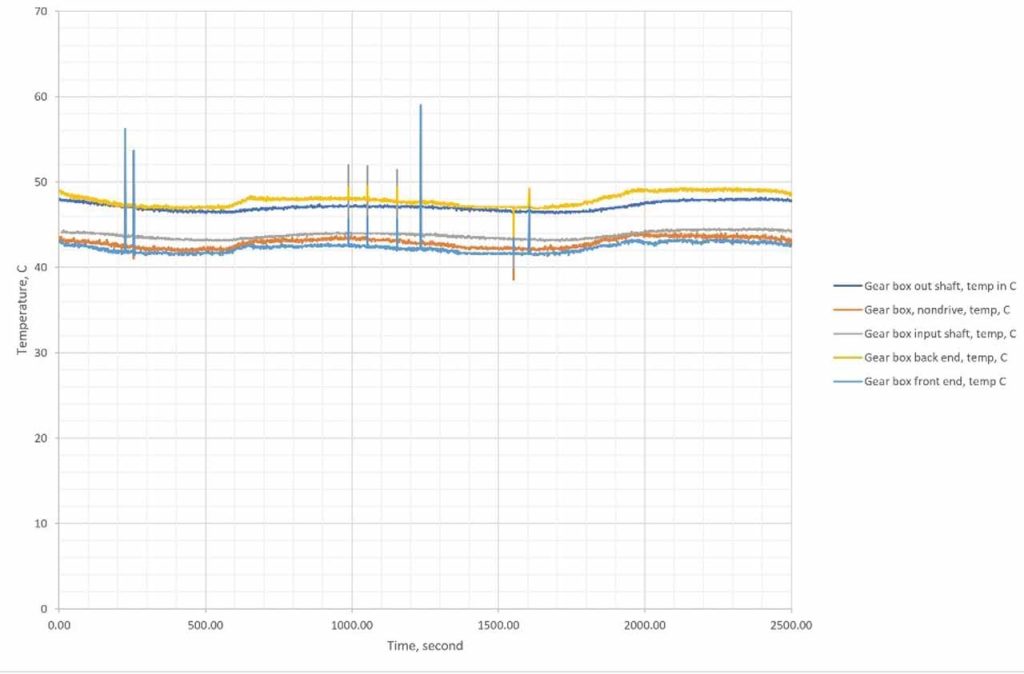

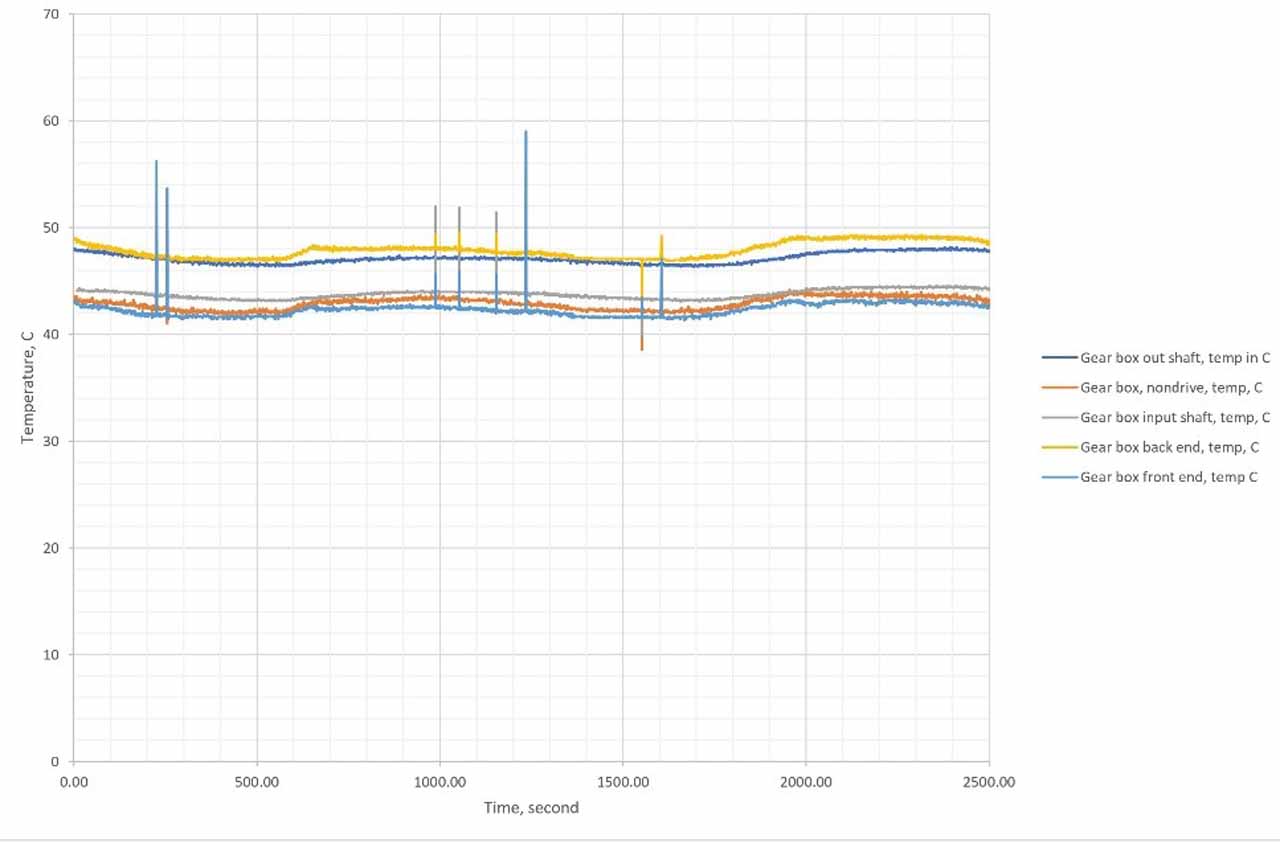

Figre 3a: A magnification view for region 1 (0-4,000 s) in Figure 2
Temperature Phase Plan Map and Poincare Section for Escalators

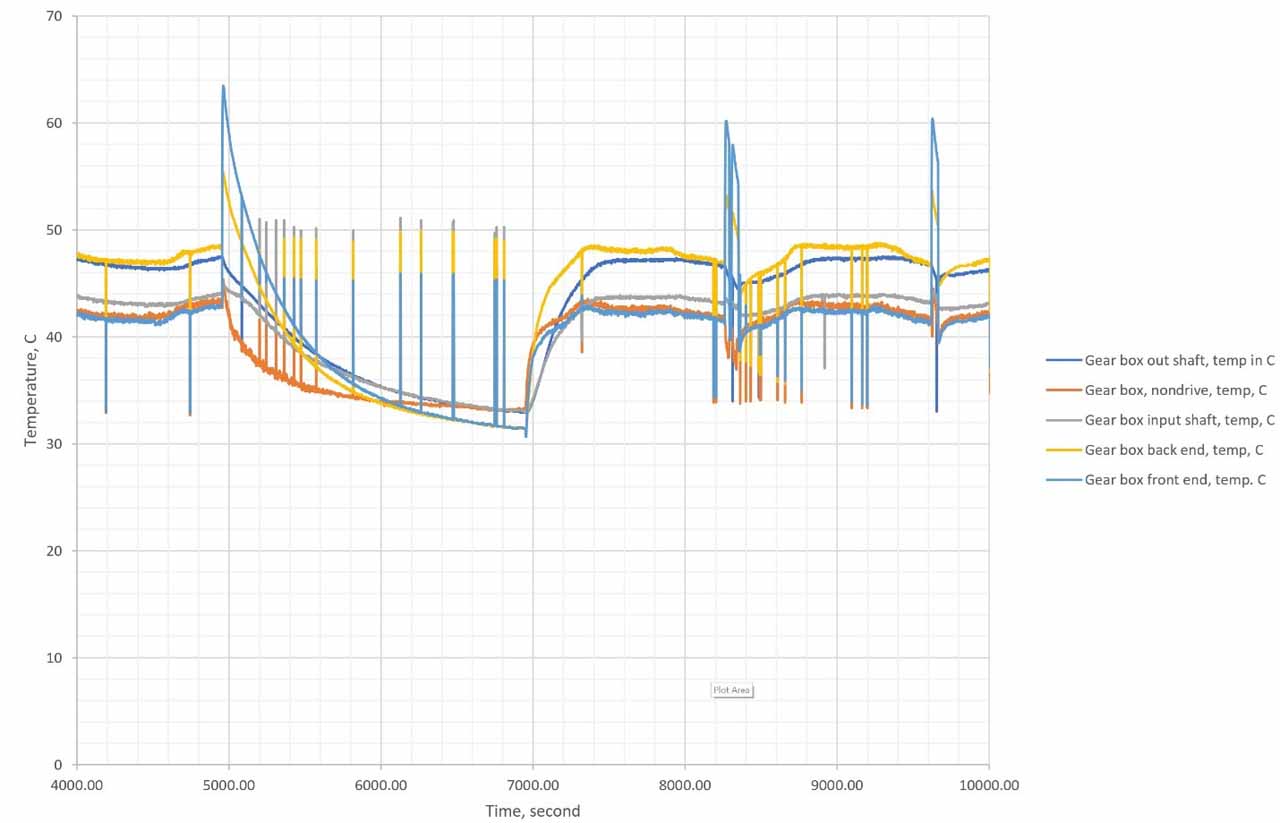

Figure 3b: A magnification view for region 1 (4,000-10,000 s) in Figure 2

The Poincare space map and the phase plane map for the nonlinear behavior of a machine like an escalator have been constructed using the traces from the temperature sensors. The Poincare space map is constructed by using the pseudo-phase plane method (also called the embedding space method). For one degree of freedom system with measurement x(t), one plots the signal versus itself but delayed or advanced by fixed time constant [x(t), x(t+T)]. The idea is that the signal x(t+T) is related to x`(t) and should have properties similar to those in the classic phase plane [x(t), x`(t)]. If the motion is chaotic, the trajectories do not close.

When the state variables are greater than three (position, velocity, time or any other parameter), the higher-dimensional pseudo-phase-space trajectories can be constructed using multiple delays. For example, a three-dimensional space can be constructed using a vector with components (x(t), x(t+T), x(t+2T)). [1]

Results and Discussion

Figures 4 to 13 show plots for the Poincare section and the phase plan map for each trace. It is very interesting and attention-grabbing to observe that the patterns and shape of the plots are very regular and systematic in the running period 0.0-4000 s, region 1. However, the data in region 2 shows a different systematic pattern than those observed in the first period. They are definitely not chaotic, but periodically forming different loops (periodic behaviors), which reflects the variation that happened in the escalator during the shutdown period.

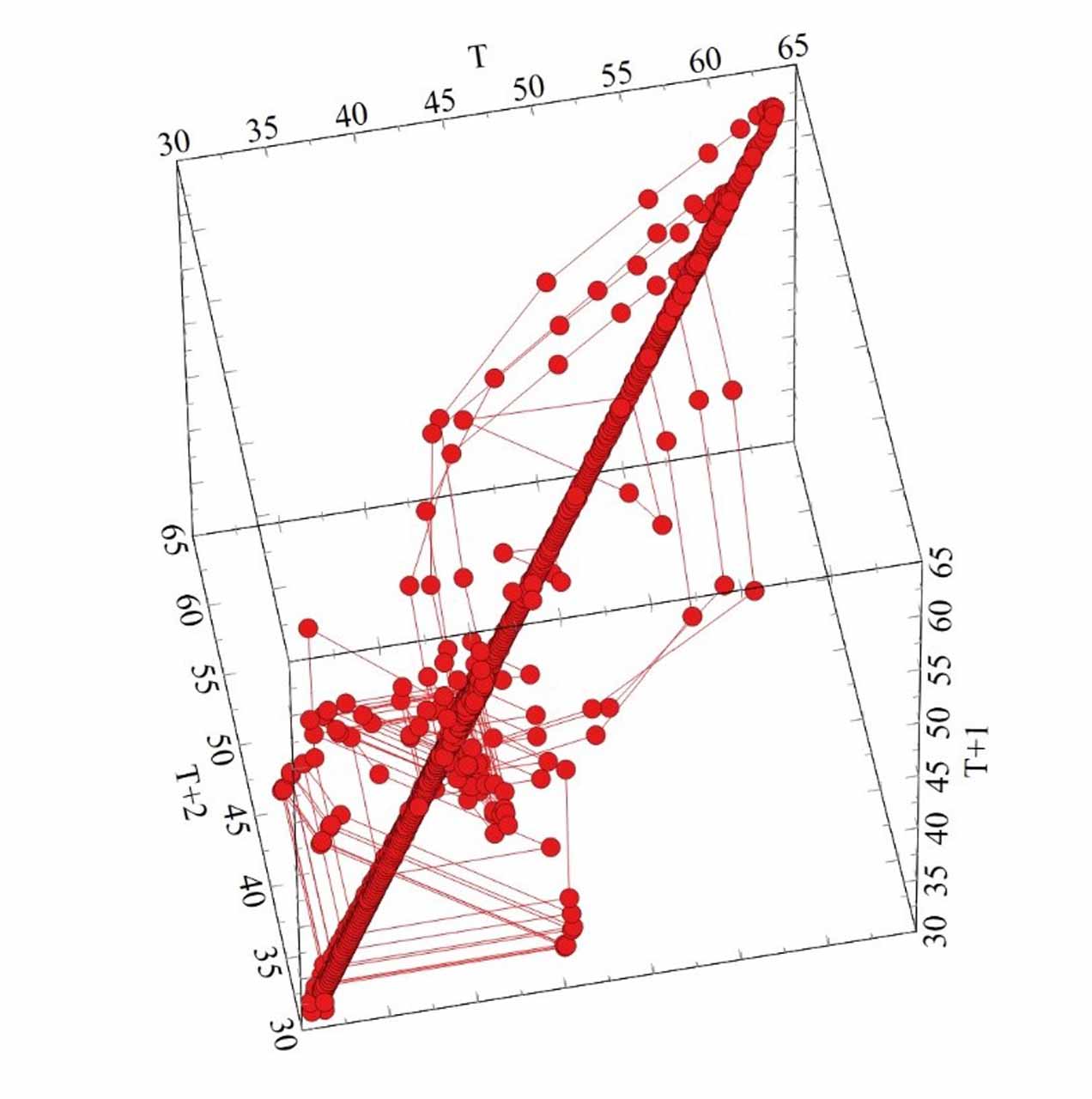

Figure 13b: Shows the Phase Plan Map for the front-end gearbox shaft between 0.0-4,000 s

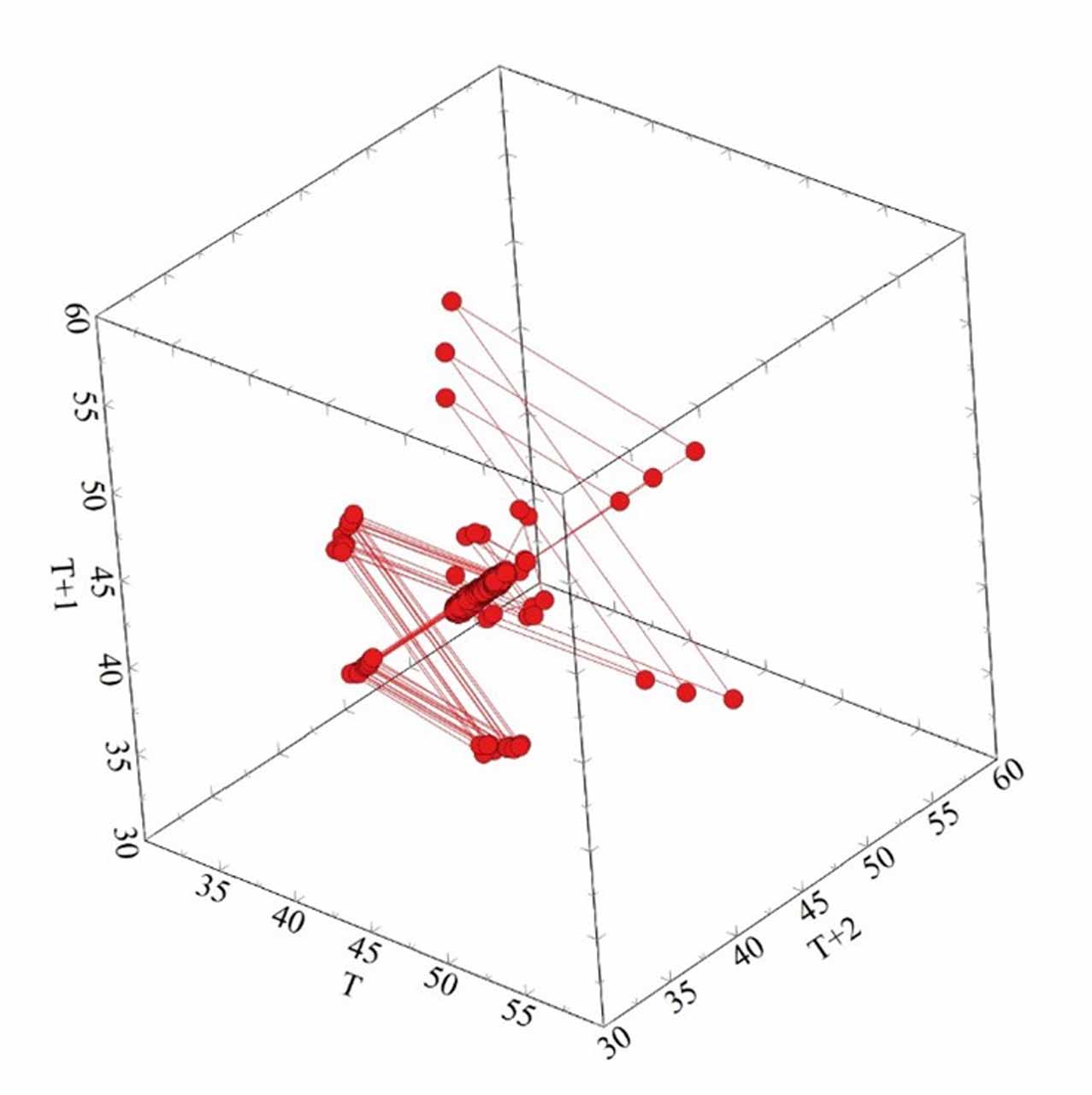

Figure 13a: Shows the Phase Plan Map for the front-end gearbox shaft between 0.0-4,000 s

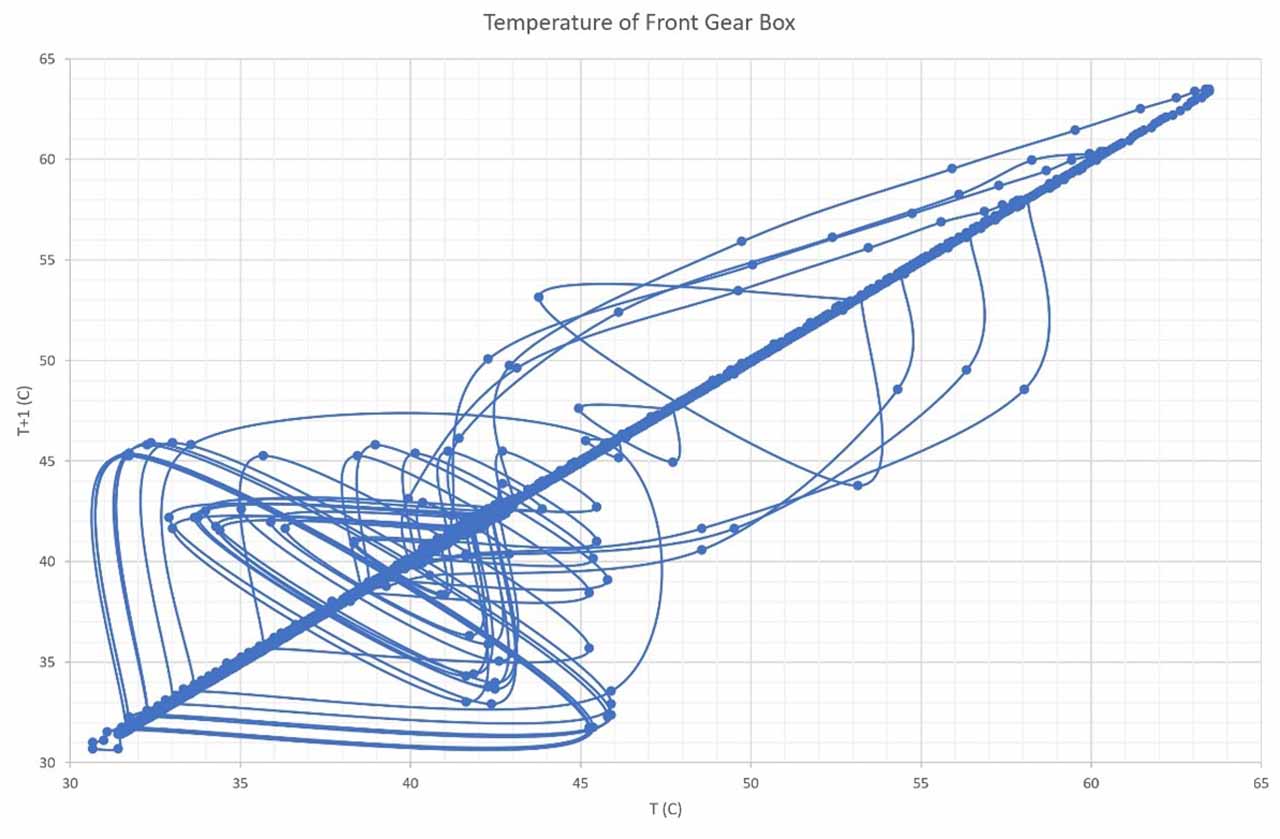

Figure 12b: Shows the Poincare section for the front-end gearbox shaft between 4,000-10,000 s

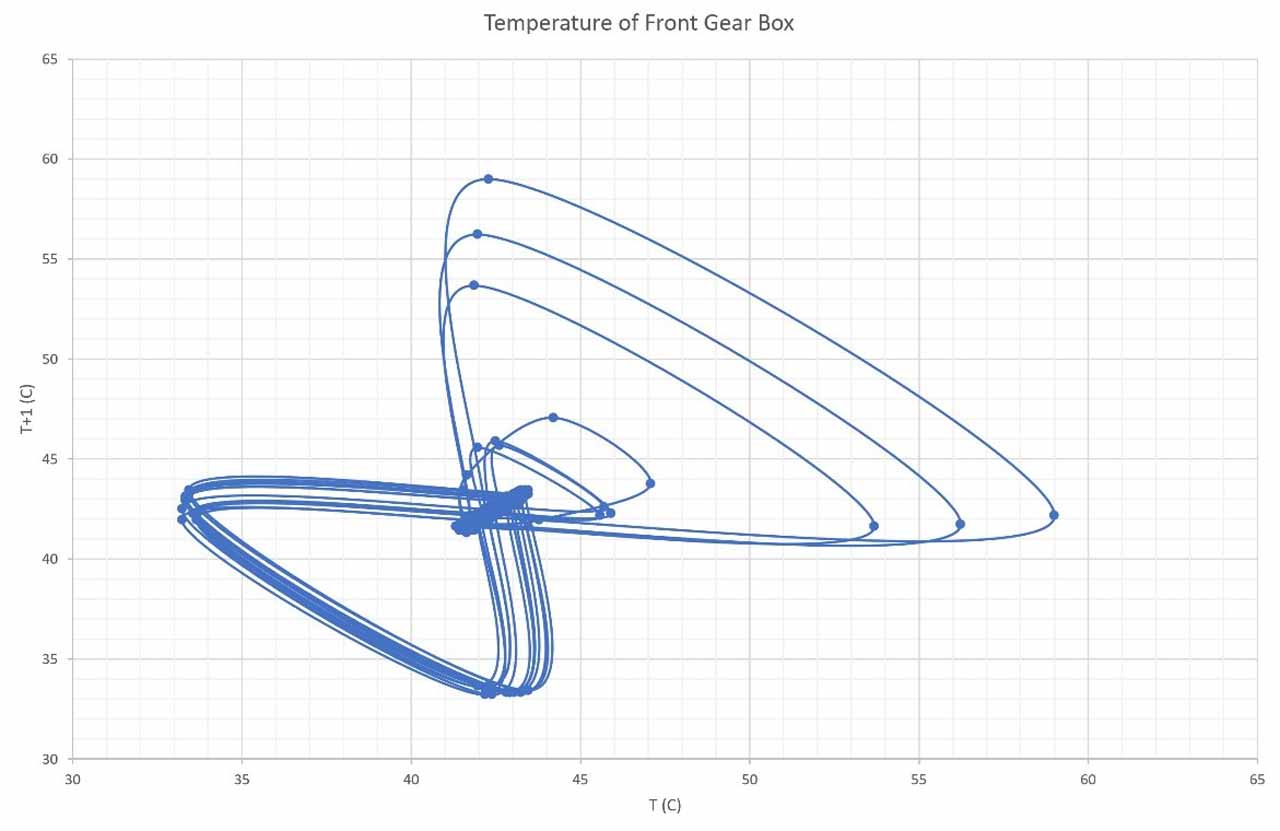

Figure 12a: Shows the Poincare section for the front-end gearbox shaft between 0.0-4,000 s

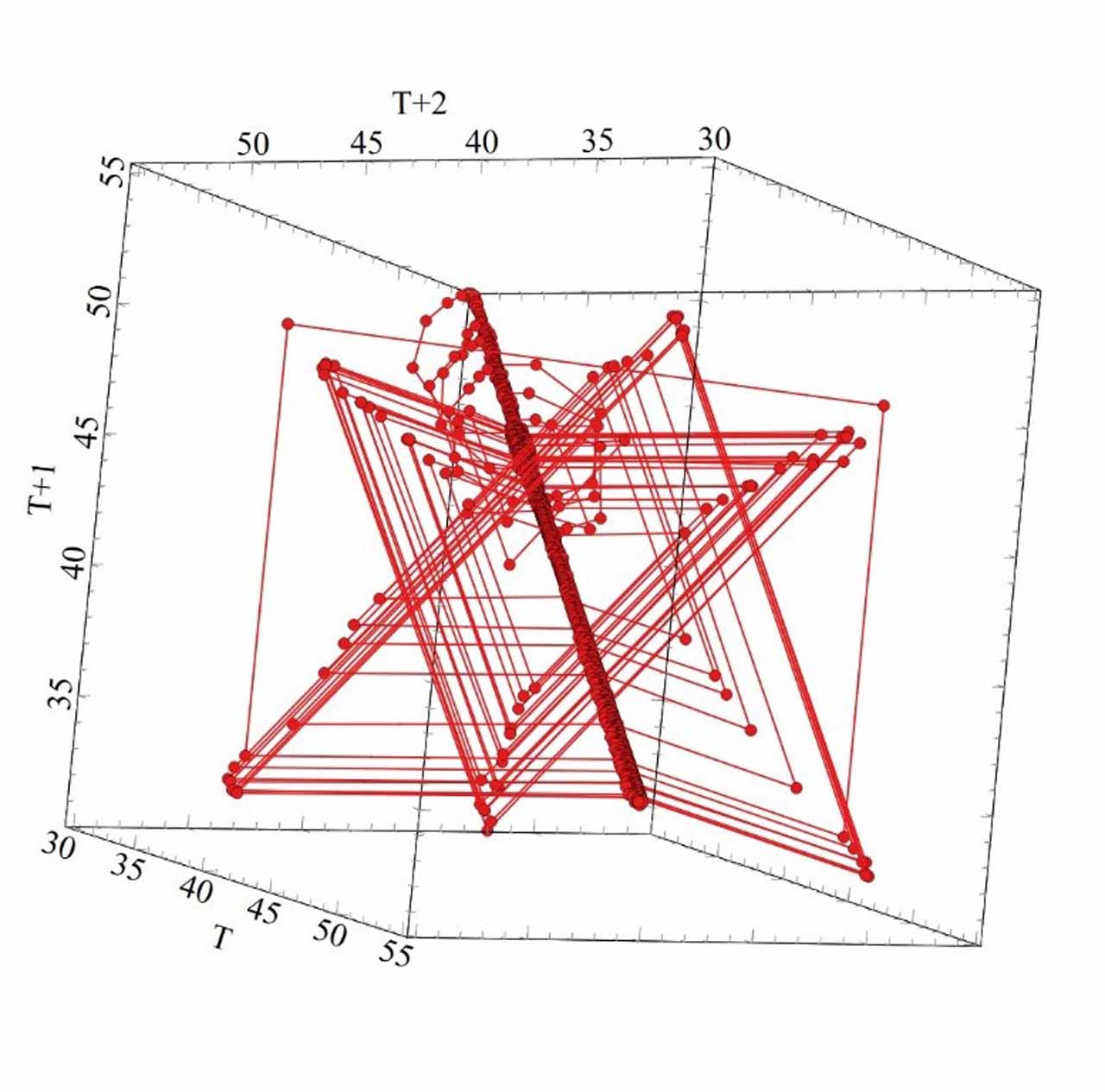

Figure 11b: Shows the Phase Plan Map for the back-end gearbox shaft between 4,000-10,000 s

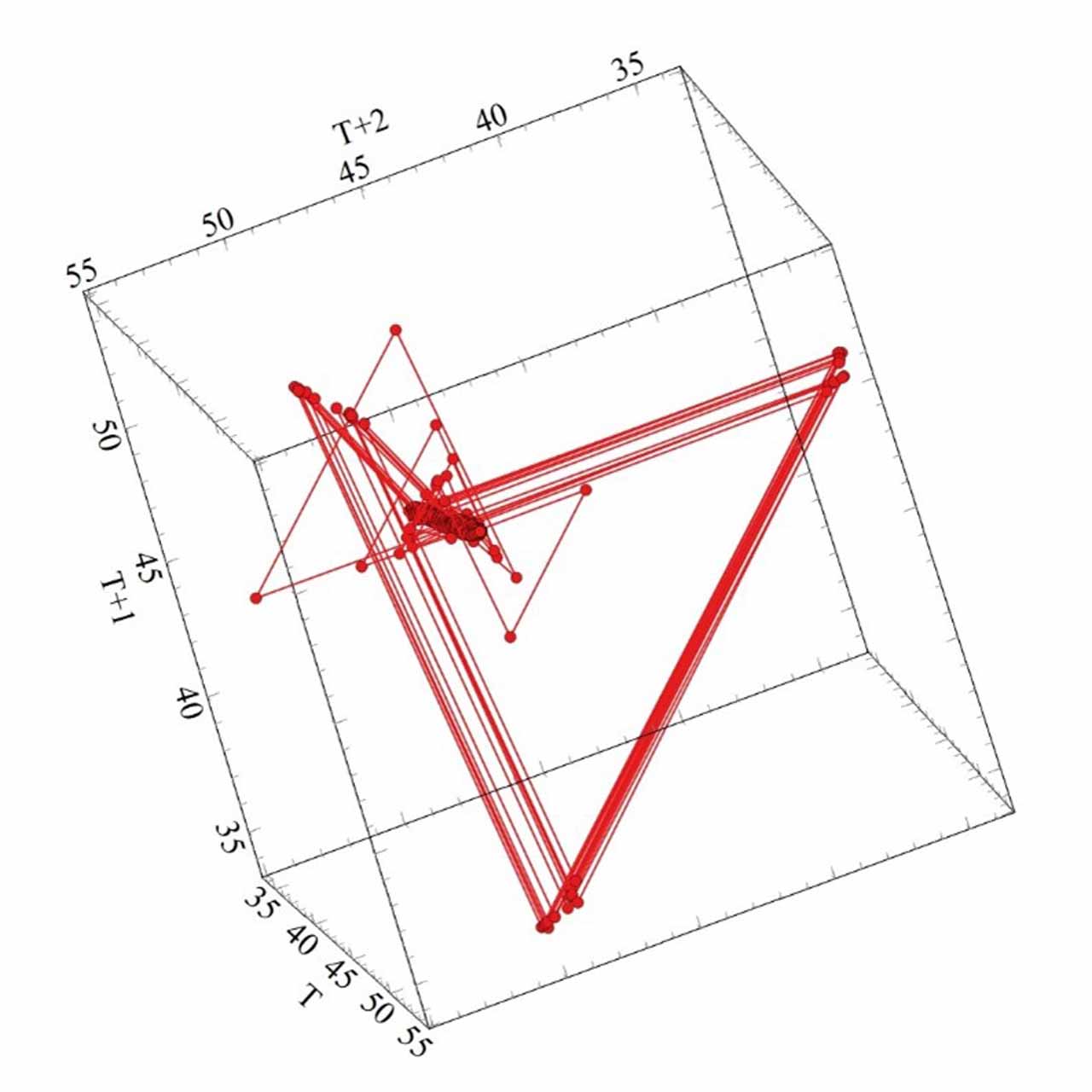

Figure 11a: Shows the Phase Plan Map for the back-end gearbox shaft between 0.0-4,000 s

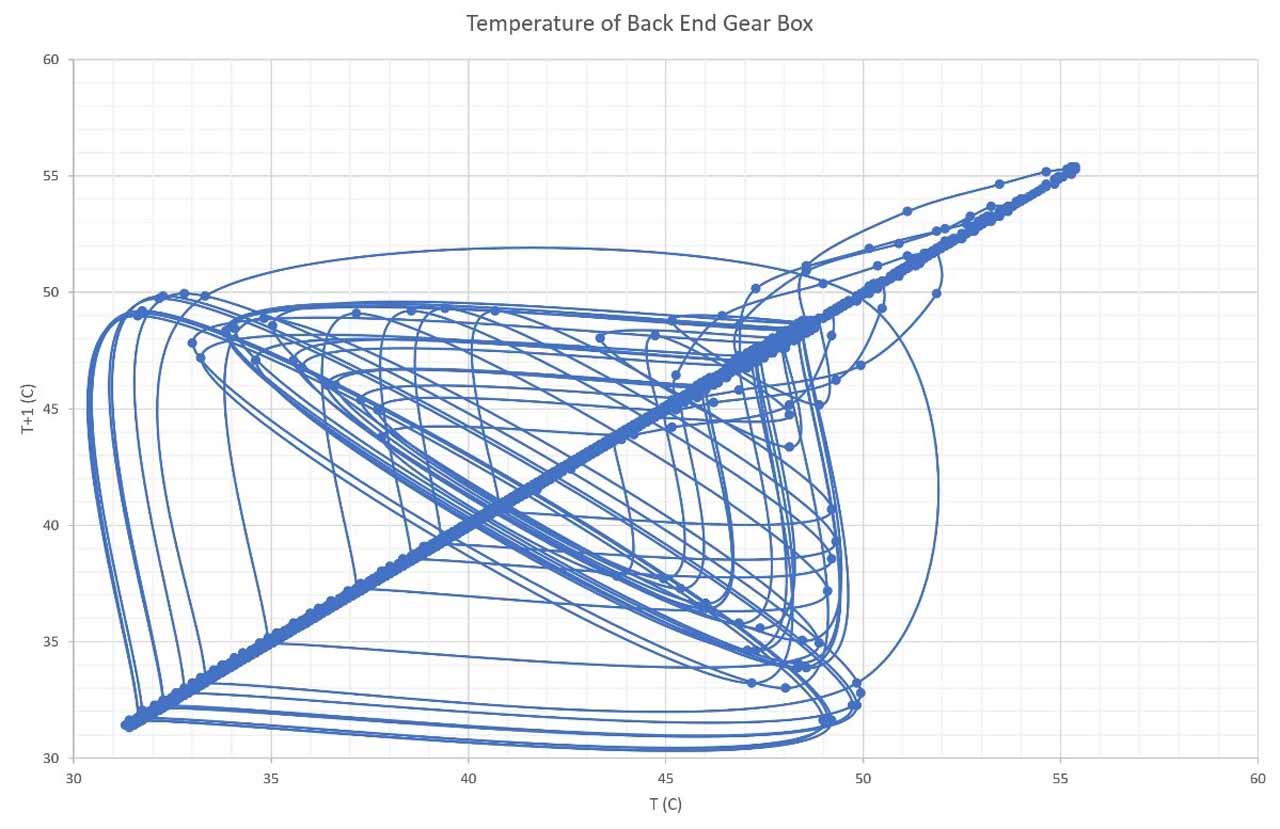

Figure 10b: Shows the Poincare section for the back-end gearbox shaft between 4,000-10,000 s

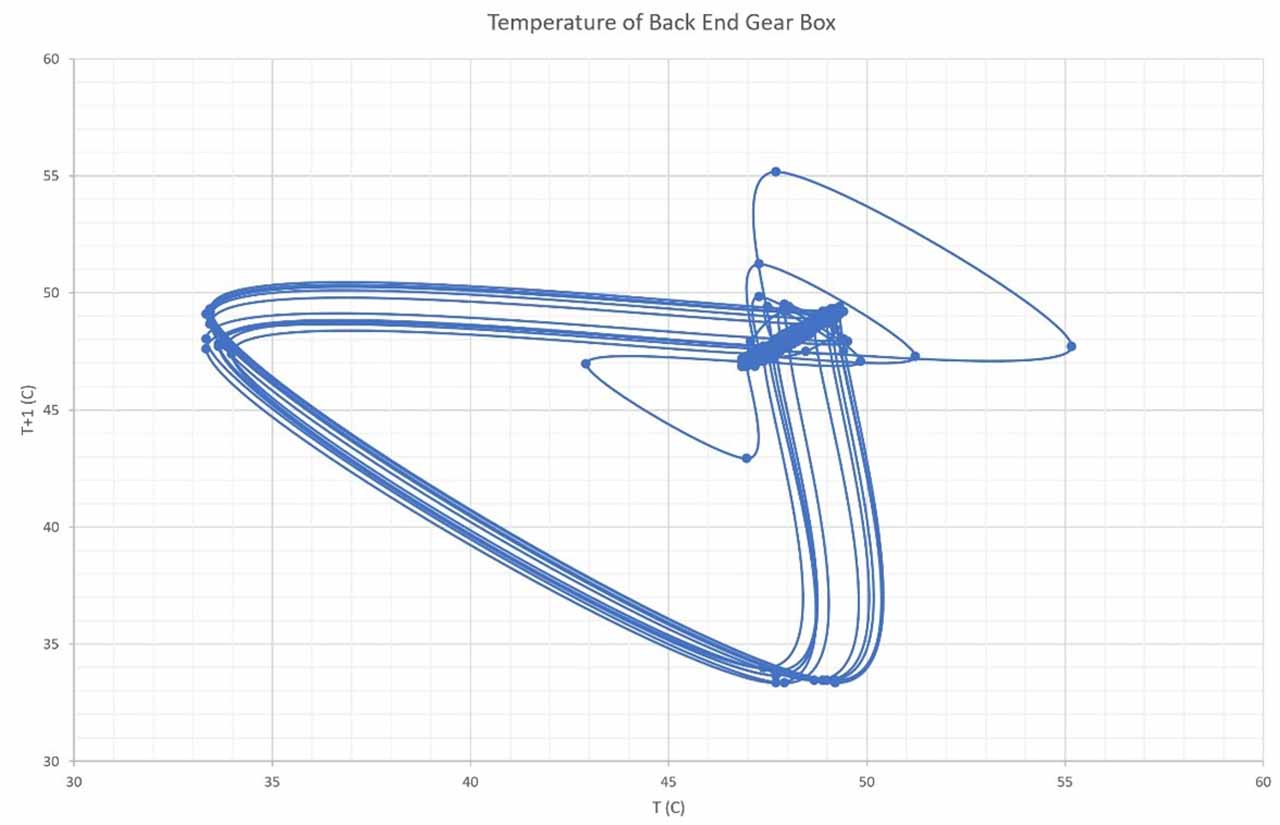

Figure 10a: Shows the Poincare section for the back-end gearbox shaft between 0.0-4,000 s

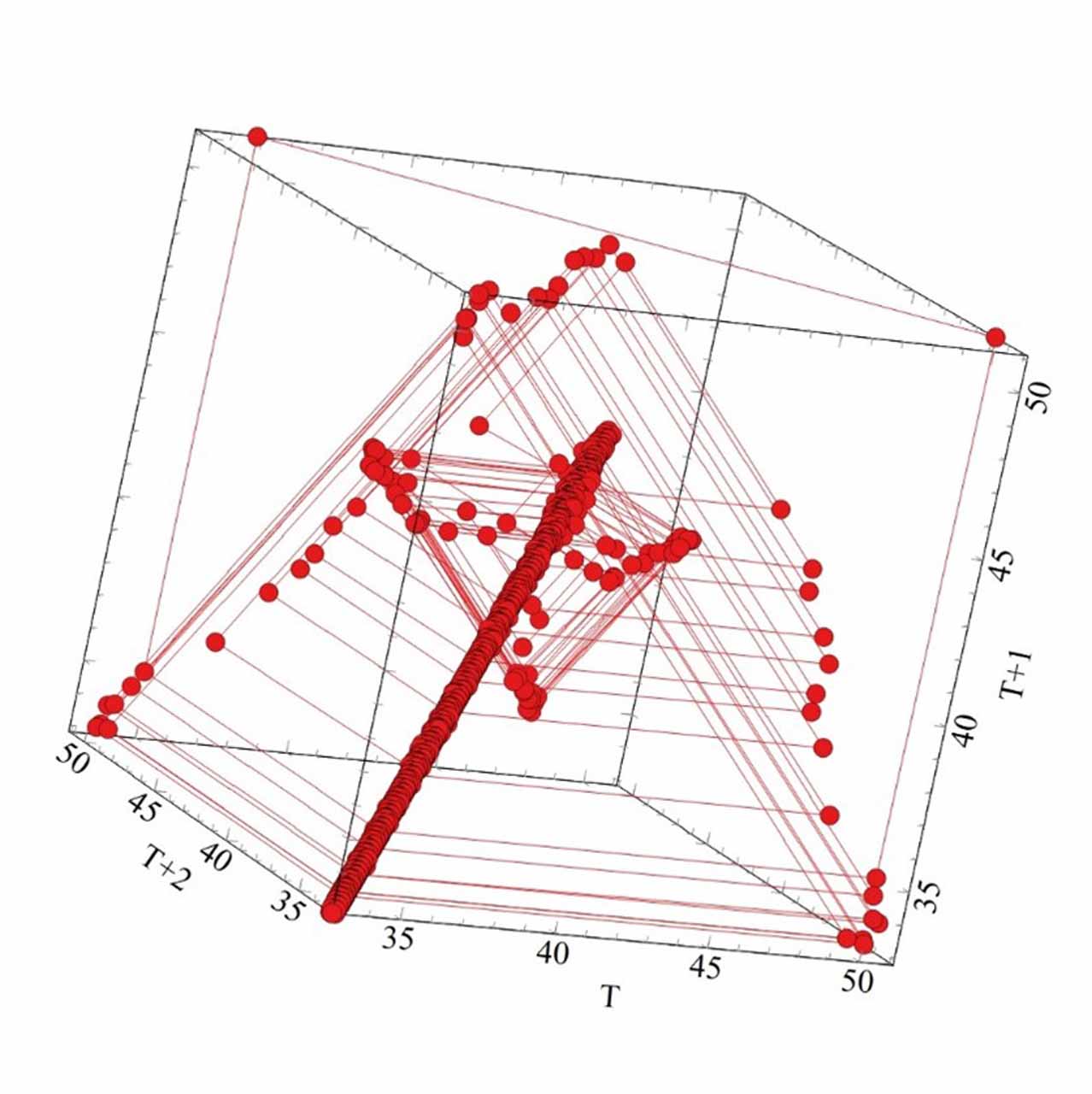

Figure 9b: Shows the Phase Plan Map for the input gearbox shaft between 4,000-10,000 s

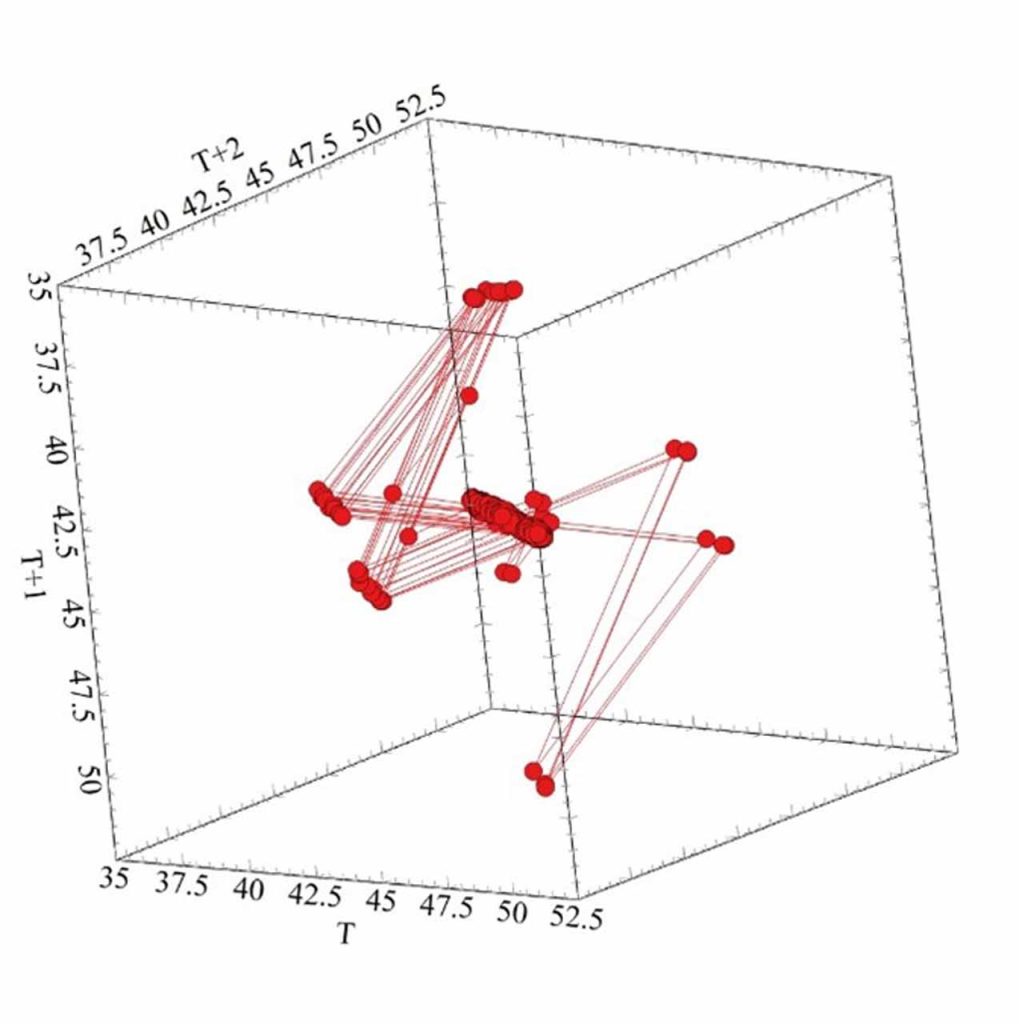

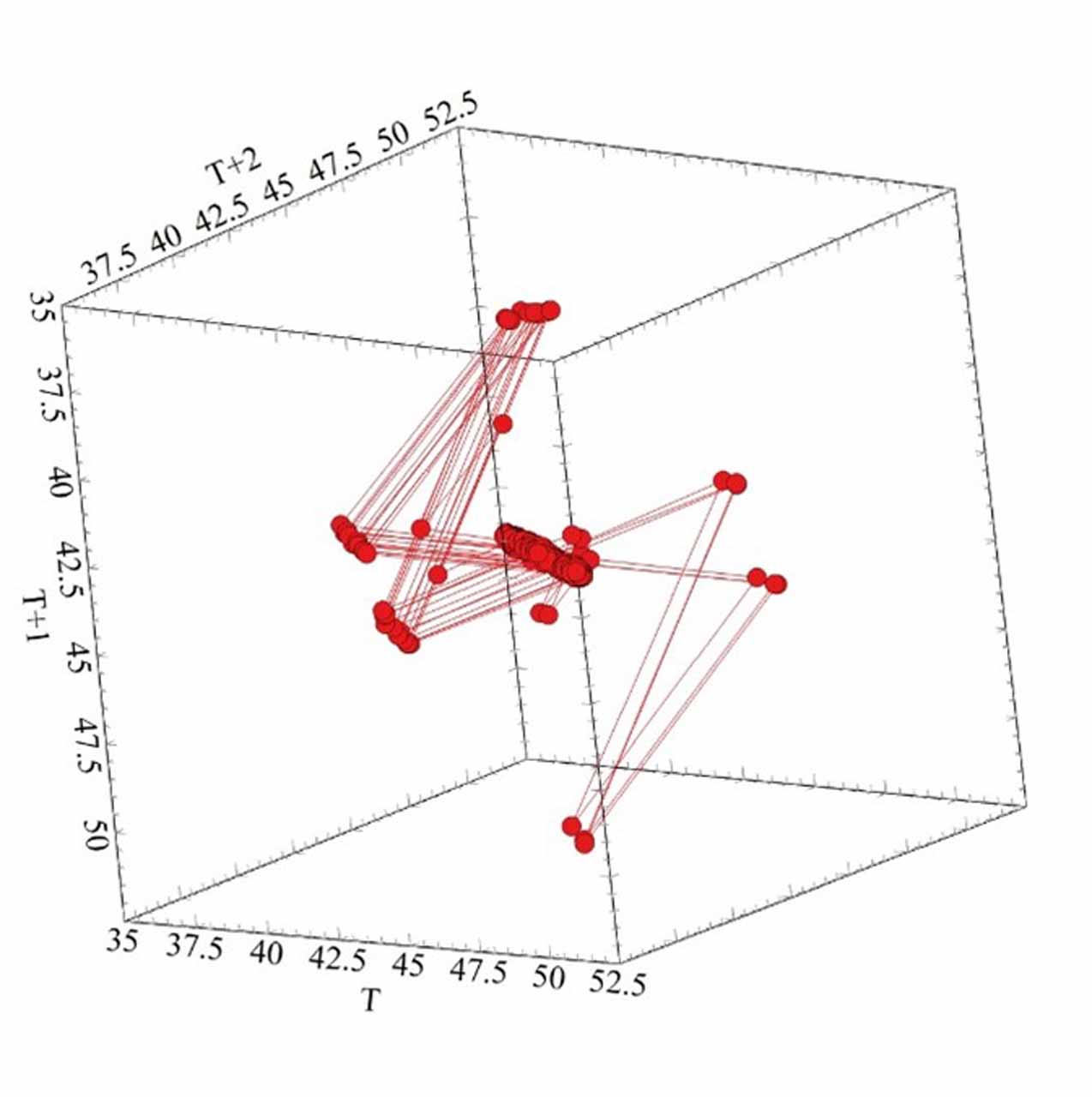

Figure 9a: Shows the Phase Plan Map for the input gearbox shaft between 0.0-4,000 s

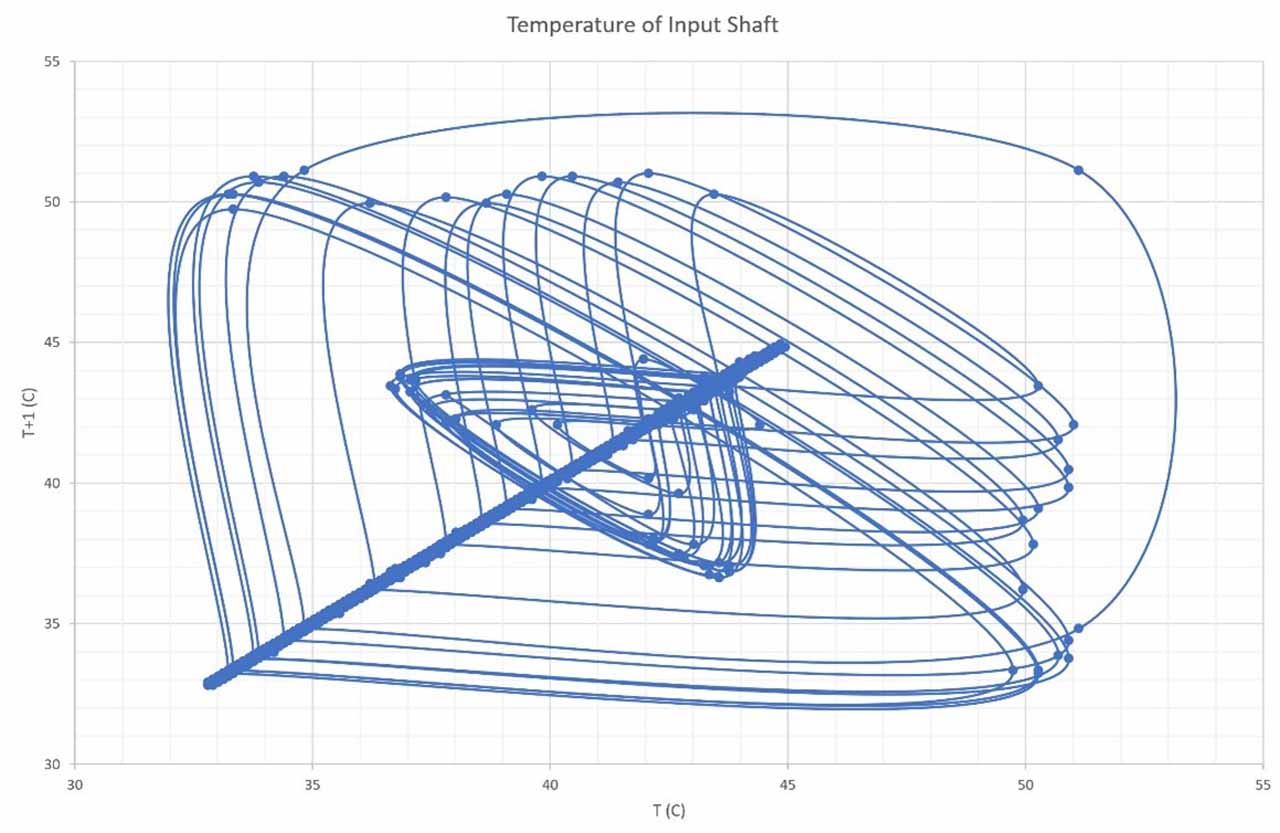

Figure 8b: Shows the Poincare section for the input gearbox shaft between 4,000-10,000 s

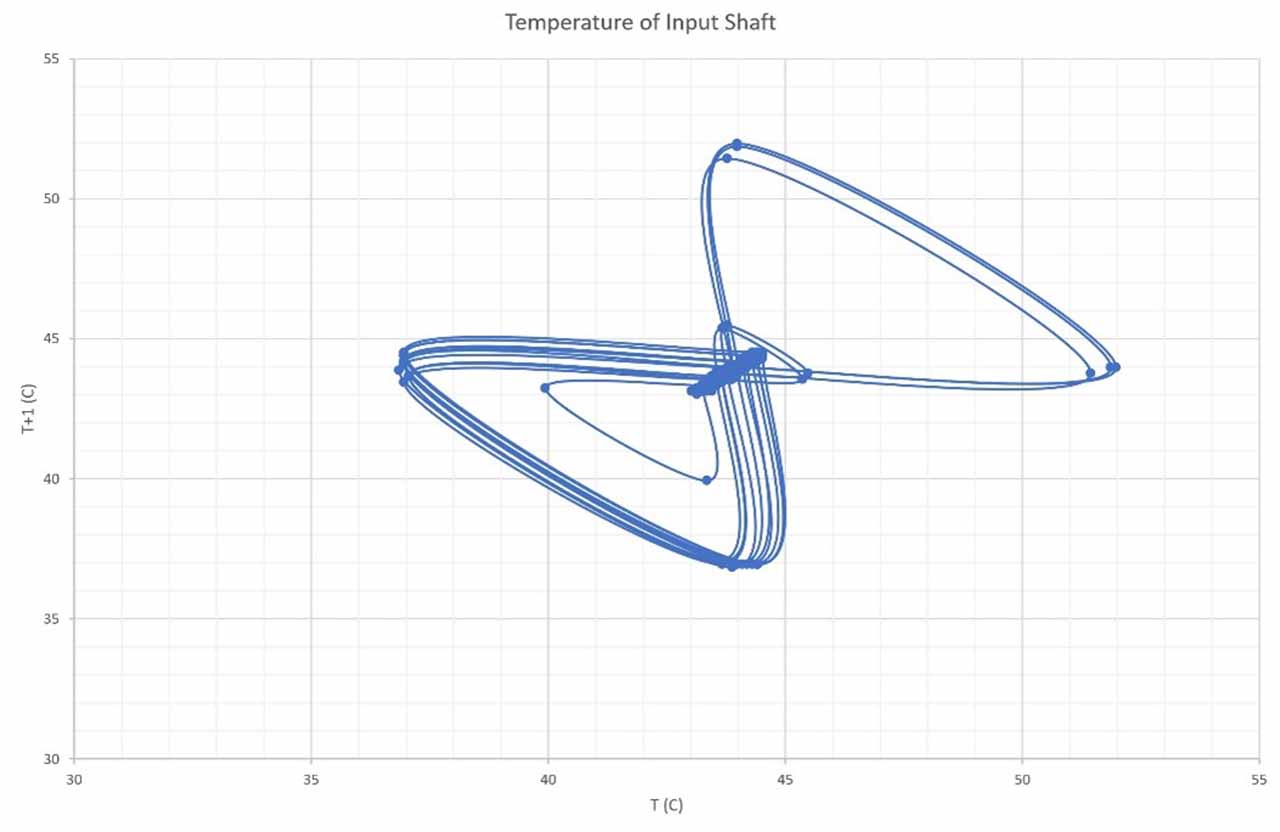

Figure 8a: Shows the Poincare section for the input gearbox shaft between 0.0-4,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

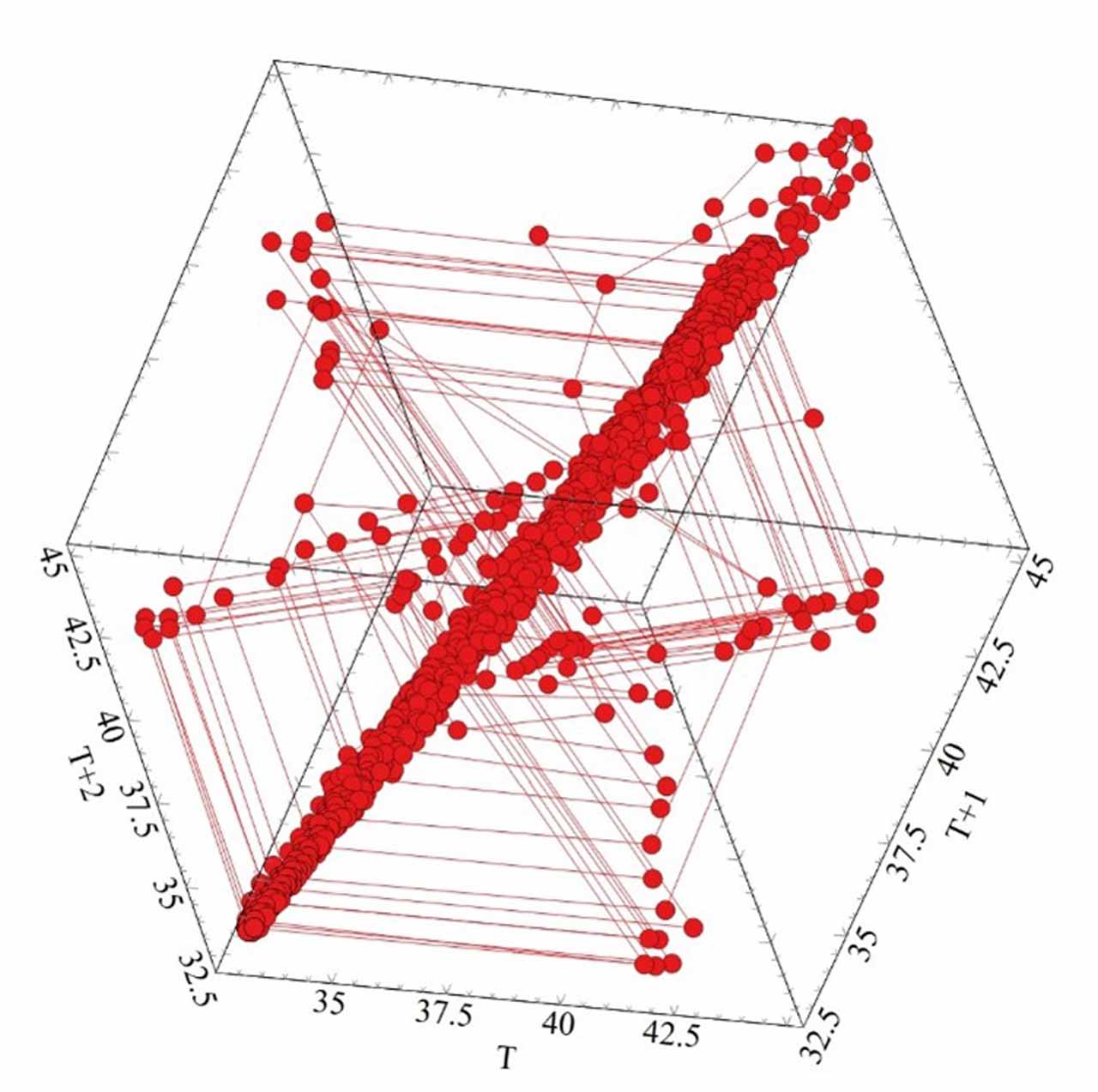

Figure 7b: Shows the Phase Plan Map for the non-drive gearbox shaft between 4,000-10,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

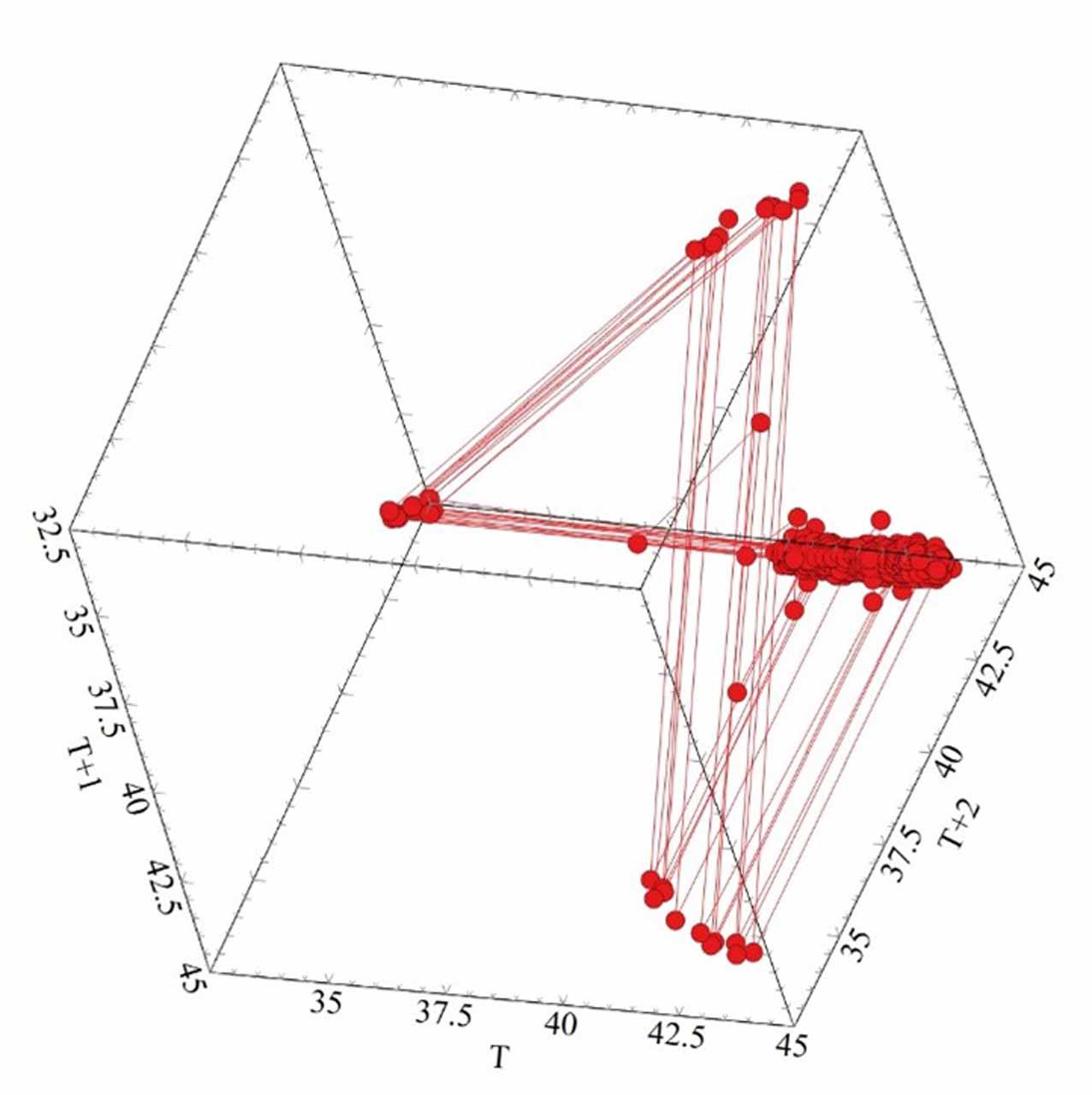

Figure 7a: Shows the Phase Plan Map for the non-drive gear box shaft between 0.0-4,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

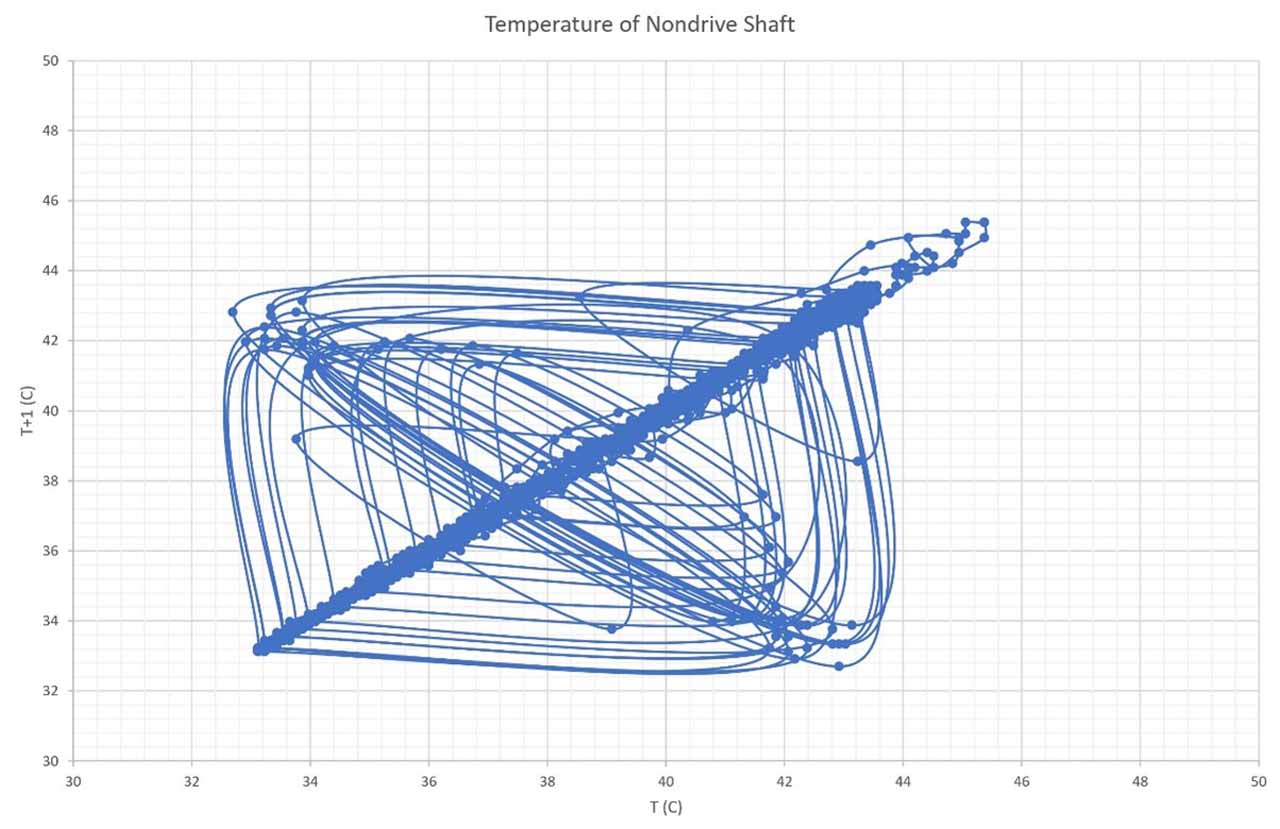

Figure 6b: Shows the Poincare section for the non-drive gearbox shaft between 4,000-10,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

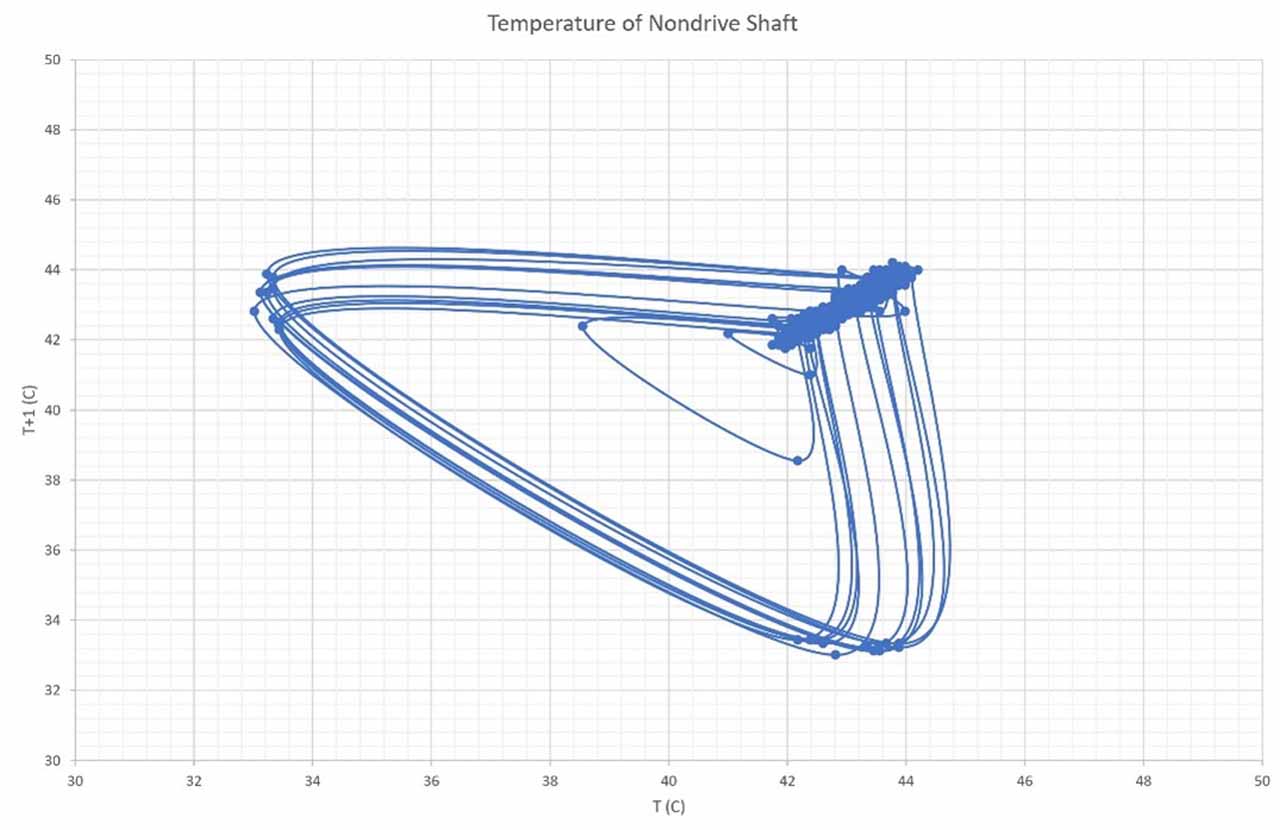

Figure 6a: Shows the Poincare section for the non-drive gearbox shaft between 0.0-4,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

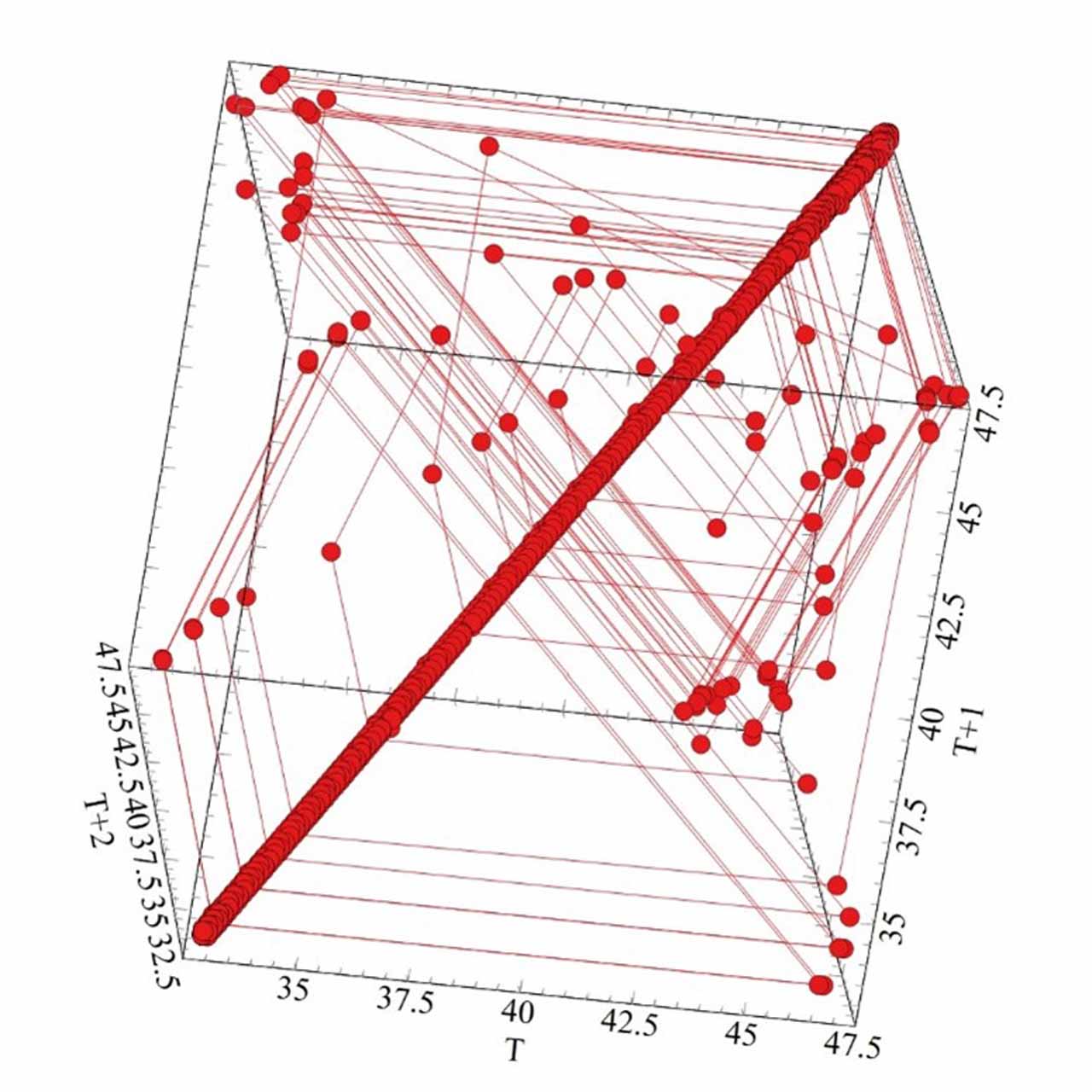

Figure 5b: Shows the Phase Plan Map for the output gearbox shaft between 4,000-10,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

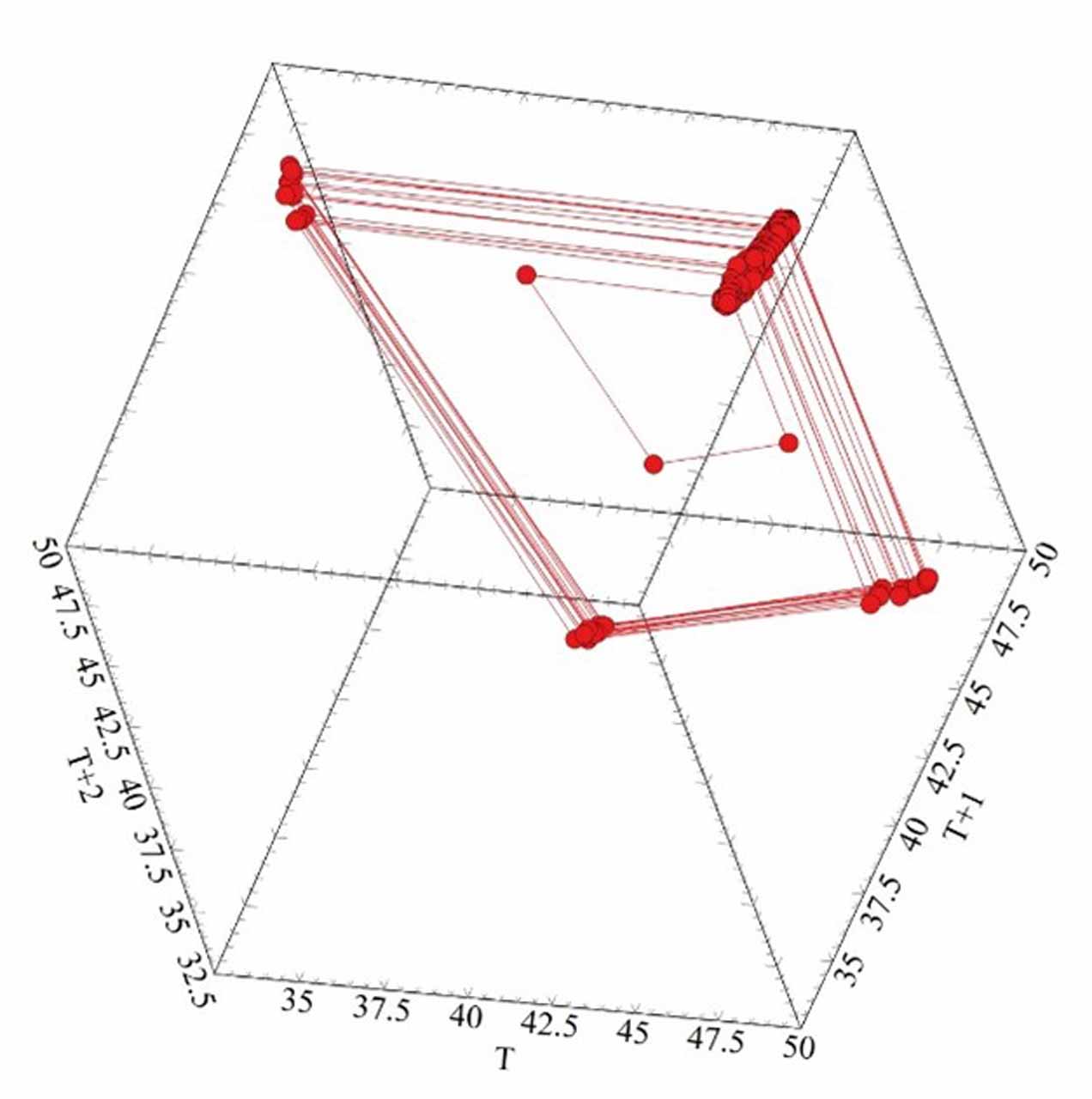

Figure 5a: Shows the Phase Plan Map for the output gearbox shaft between 0.0-4,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

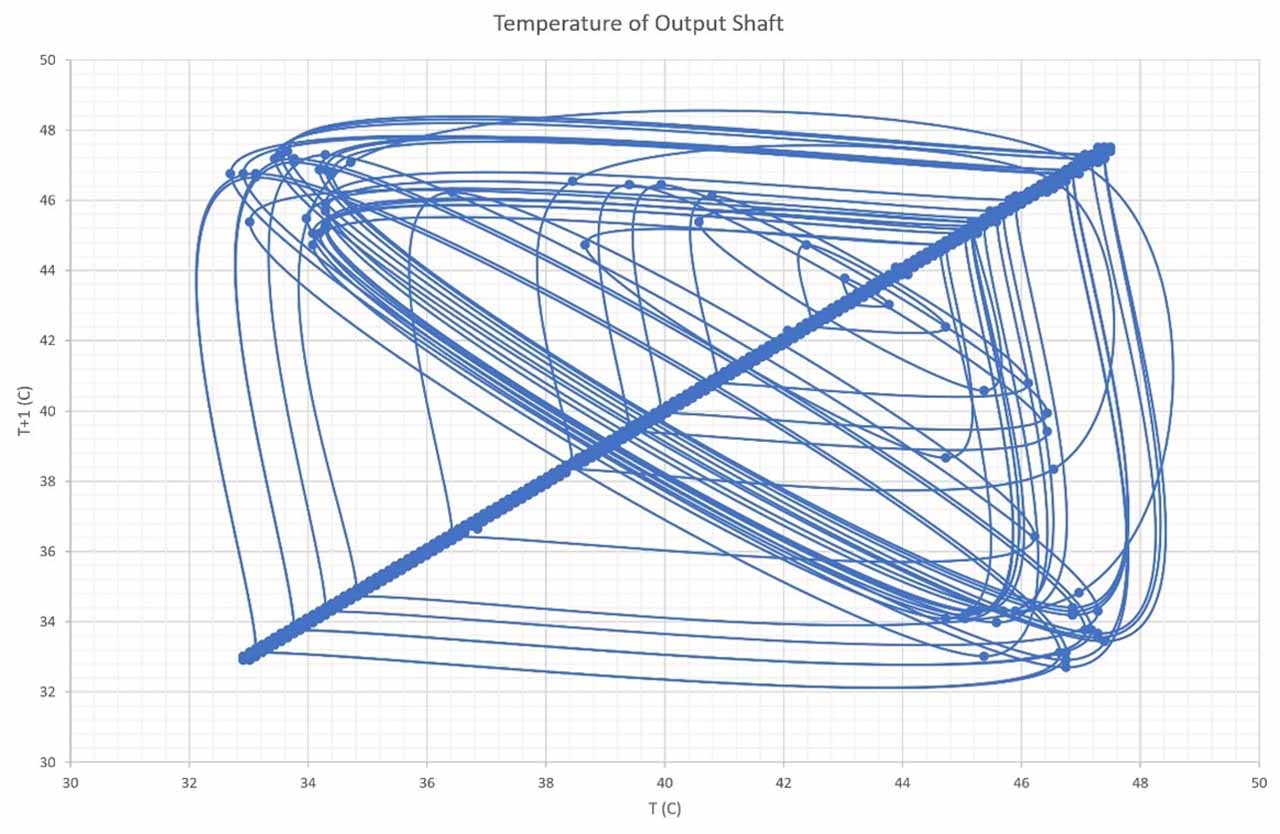

Figure 4b: Shows the Poincare section for the output gear box shaft between 4,000-10,000 s
Temperature Phase Plan Map and Poincare Section for Escalators

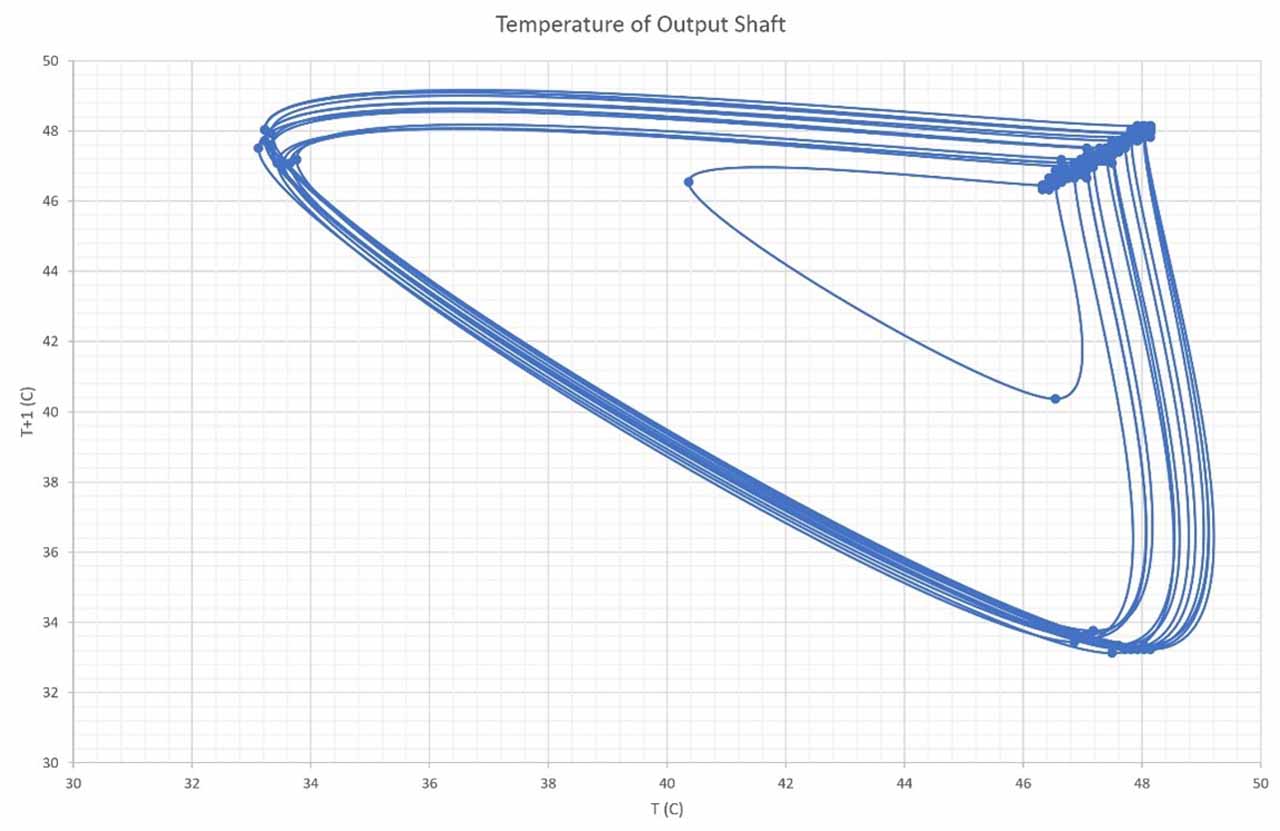

Figure 4a: Shows the Poincare section for output gear box shaft between 0.0-4,000 s

Conclusions

This study has proven that the phase plane map and the Poincare section are interesting tools to be used to monitor the behavior of gearboxes. Beautiful and interesting patterns were developed in the maps and sections of temperatures measured from the gearbox. Variations in the behavior of the gearbox temperature were noticed too, in the shape of other periodic patterns and shapes.


References

[1] A. Albadri.“Tube Lines Gets Smart to Monitor Escalator Wear,” Computer Weekly (07/01/2008).

[2] A. Albadri.“Smart Step Measures Escalators Heartbeats,” ELEVATOR WORLD UK, iss.104, 20/03/2020.

[3] A. Albadri.“Escalator Fractal Behavior (Part 3),” EW Jan 2021.

[4] A. Albadri.“Smart Step Measures Escalator’s Heartbeat,” EW UK,” March- April 2020.

[5] A. Albadri.“Escalator Fractal Behavior (Part 1),” EW June 2020.

[6] A. Albadri.“Escalator Fractal Behavior (Part 2),” EW June 2020.

[7] A. Albadri.“The Construction of Poincare Space Map and Phase Plane Map for Escalators (Part 1).” To be published.

[8] A. Albadri.“The Construction of Poincare Space Map and Phase Plane Map for Escalators (Part 2).” To be published.

[9] A. Albadri.“The Construction of Poincare Space Map and Phase Plane Map for Escalators (Part 3).” To be published.

[10] Liu, Y; Yuan, Z; Wang, N; Zhao, J.“An Intelligent Fault Diagnosis Method for Reciprocating Compressors Based on LMD and SDAE.” Sensor, 2019, 19, 1041.

[11] Wang, Y; Gao, A; Zheng, S; Peng, X. “Experimental Investigation of the Fault Diagnosis of Typical Faults in Reciprocating Compressor Valves.” Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2016, 230, 2285-2299.

[12] Aravinth, S; Sugumaron, V. “Air Compressor Fault Diagnosis Through Statisical Feature Extraction & Random Forest Classifiers.” Prog. Ind. Ecol. Int. J. 2018, 12 192-205.

[13] Xiao, S; Liu, S; Jiang, F; Song, M: Cheng, S. “Nonlinear Dynamic Response of Reciprocating Compressor System with Rub-Impact Gault Caused by Subsidence.” J. Vib. Control., 2019, 25, 1737-1751.

[14] Xiao, S; Zhang, H; Liu, S, Jiang, F; Song, M. “Dynamic Behavior Analysis of Reciprocating Compressor with Subsidence Fault Considering Flexible Piston Road.” J. Mech. Sci. Technol. 2018, 32, 4103-4124.

[15] Tufillaro, N B, Abbott, T, Reilly, J. “An Experimental Approach to Nonlinear Dynamics and Chaos.” Addison – Wesley; Redwood City, CA, U.S., 1922.

[16] Soleimani A; Kadem, S “Early Fault Detection of Rotating Machinery Through Chaotic Vibration Feature Extraction of Experimental Data Sets.” Chaotic Solutions Fractals 2015, 78, 61-75.

Dr. Ali Albadri is chief engineer at London Underground Ltd. He has served as lead engineer for Tube Lines Ltd. and JNP. Prior to joining the vertical-transportation industry, he worked for the University of Manchester Institute of Science and Technology (UMIST), Brunel University and Oxford University, in addition to Cookson Group, ABB, Olympus and Hydronix Ltd. He has a PhD and an MPhil in materials science from UMIST and the University of Sheffield, respectively, and BSc degrees in nuclear engineering from Baghdad University and mechanical engineering from Technology University. Albadri has had papers about materials science and concrete design instruments published. Recently, he has had more than 20 papers on using the fractal dimension concept in understanding and maintaining machines published. He has also and invented and patented many products, such as the concrete strength device, the smart step and the smart test rig.
